Detailinformationen |
|||
| Helligkeit: | 4500–5500 cd/m² | Farbtiefe: | 16-Bit |
|---|---|---|---|
| Kontrastverhältnis: | 4000:1 | Betriebstemperatur: | -10°C bis 45°C |
| Pixeldichte: | 62500 Punkte/m2 | Stromverbrauch: | 780W/m² |
| Stromversorgung: | 110V-220V | Aktualisierungsrate: | 3840–7680 Hz |
| Auflösung: | 240 Punkte*240 Punkte | Betrachtungswinkel: | 170 ° |
| Wasserdichtigkeitsklasse: | IP65 | Schrankgröße: | 960 mm*960 mm |
| LED -Spezifikation: | SMD 1921 | Scanrate: | 1/10s |
| Lebensspanne: | 100.000 Stunden | ||
| Hervorheben: | IP65 Waterproof LED Billboard,4500-5500cd/m² Brightness LED Video Wall,3840-7680Hz Refresh Rate Outdoor LED Display Screen |
||
Produkt-Beschreibung

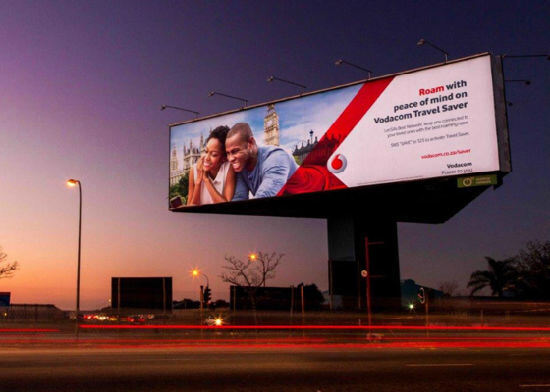

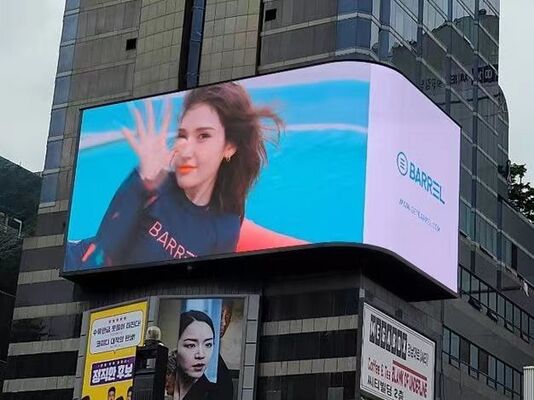

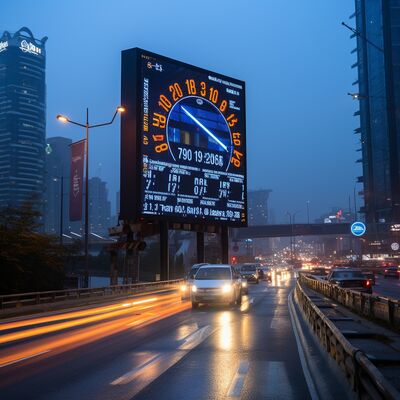

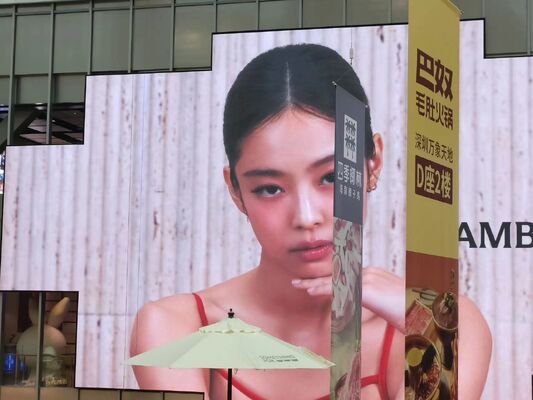

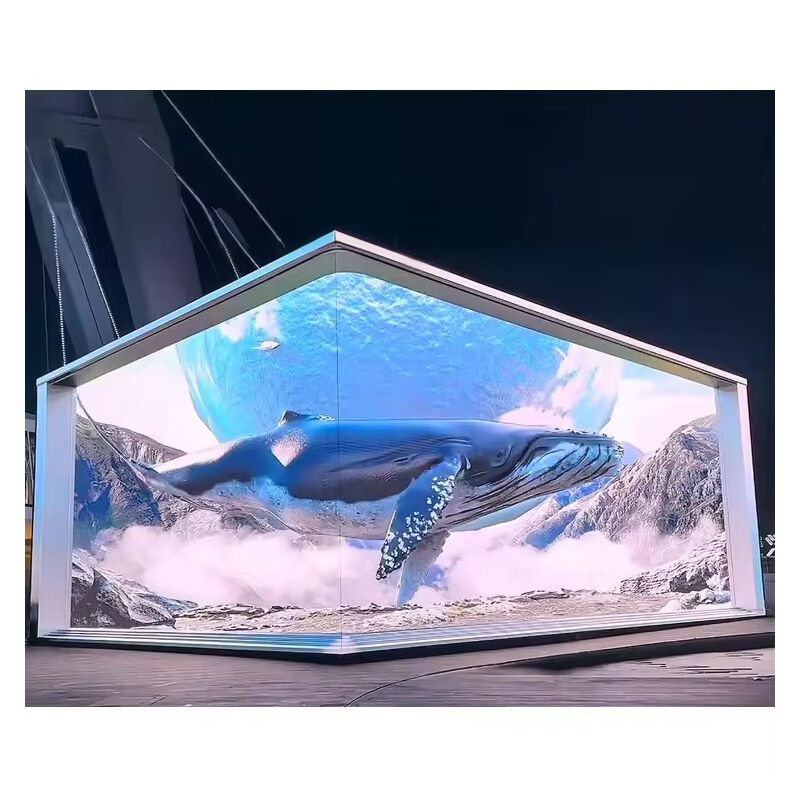

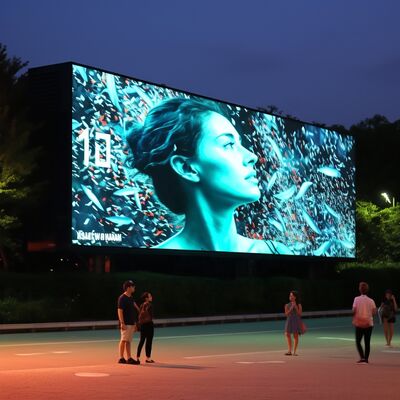

P4 High Brightness Outdoor LED Display
Professional IP65 LED screens designed for outdoor advertising, billboards, street displays, and commercial applications. Built with waterproof cabinets and superior brightness for optimal visibility in various outdoor environments.
Product Features
- High brightness: 4500-5500cd/m² for excellent sunlight readability
- IP65 waterproof rating for outdoor durability
- Wide 170° viewing angle
- High refresh rate: 3840-7680Hz for smooth video playback
- 16-bit color depth with 4000:1 contrast ratio
- Front/Rear service access for easy maintenance
- Long lifespan: 100,000 hours
- Compatible with third-party CMS and remote management
Technical Specifications
| Pixel Pitch | 4mm |
| Pixel Density | 62,500 dots/㎡ |
| Brightness | 4500-5500cd/m² |
| Waterproof Rating | IP65 |
| Viewing Angle | 170° |
| Refresh Rate | 3840-7680Hz |
| Color Depth | 16-Bit |
| Contrast Ratio | 4000:1 |
| Power Consumption | 780W/m² |
| Operating Temperature | -10°C to 45°C |
| Cabinet Size | 960mm × 960mm |
| Control System | Novastar System |
| LED Specification | SMD 1921 (1R1G1B) |
| Scan Rate | 1/10S |
| Warranty | 2 Years |
| Certifications | FCC, CE |
Applications
Outdoor advertising, retail stores, shopping malls, restaurants, hotels, airports, exhibitions, stages, commercial displays, and street advertising.
Company Profile
Shenzhen LED King Technology Co., Ltd. is founded by a professional team with extensive experience in LED display technology. Contact our service team for detailed discussions about your project requirements.
Frequently Asked Questions
What control system do you use?
We use Nova Taurus Series asynchronous control system that supports cluster play and management. Compatible with APP/Phone/WIFI/iPad/Laptop/PC/Cloud control for easy and convenient operation.
Can I order samples?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Is logo printing available?
Yes, please inform us formally before production and confirm the design based on our sample.
What is your delivery time?
Generally 7-15 days after receiving your deposit. Specific delivery time depends on items and order quantity.
What is your warranty policy?
2-year warranty with professional after-sales team to solve any questions regarding structure design, installation problems, system issues, and usage guidance.
For custom pixel pitch requirements, technical details, or specific project needs, please feel free to contact our professional team.
